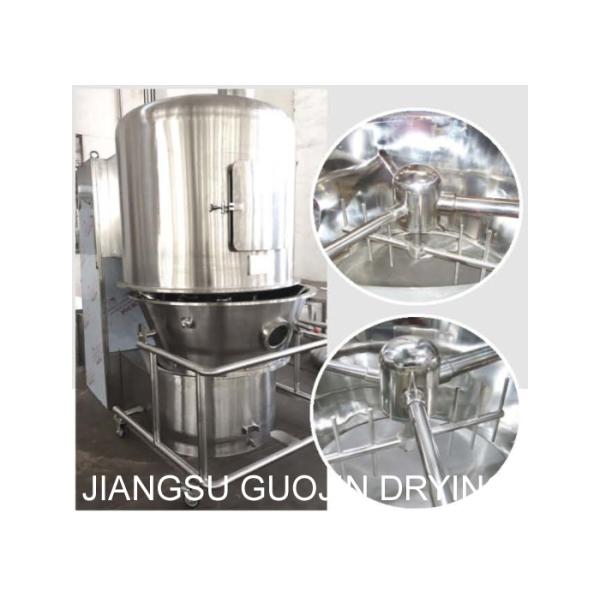

SFBD Series 11rpm Vertical Fluid Bed Dryer With Internal Stirrer

Use screw to extrude and vibrate granule and granulate using the methods of humidity, high speed and mixing.

This machine is suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feedstuff, chemical industries and so on.

​The raw material is large in granule and small in block and having adhesive property.

Suitable for raw materials, its volume will be changed when dry, such as giant arum, polyacrylamide, etc.

Working Principle

When air purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the material is dried quickly.

Features

1.The structure of fluidized bed is round so as to avoid dead corner.

2.Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow.

3.The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too.

4.It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.

5.The drying speed is fast and the temperature is uniform. In general the drying time is 20-30 minutes for each batch.

Technical Parameters

Item		Unit	Type
Raw material		Kg	60	100	120	150	200	300	500
Fan	Air volume	m3/h	2361	3488	3400	4901	6032	7800	10800
	Air pressure	mmH2O	594	533	533	679	787	950	950
	Power	kw	7.5	11	15	15	22	30	45
Stirring power		kw	0.55	0.55	0.55	0.55	0.55	0.75	1.1
Stirring speed		rpm	11
Steam consumption		kg/h	141	170	170	240	282	366	451
Operation time		min	15-30 according to the condition
Height of maine machine	Square	mm	2750	2850	2850	2900	3100	3300	3650
	Round	mm	2700	2900	2900	2900	3100	3600	3850

Flowchart

Product Show
