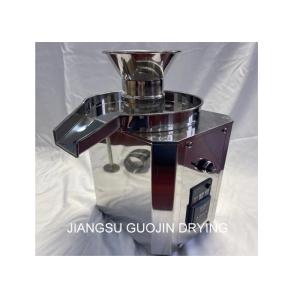

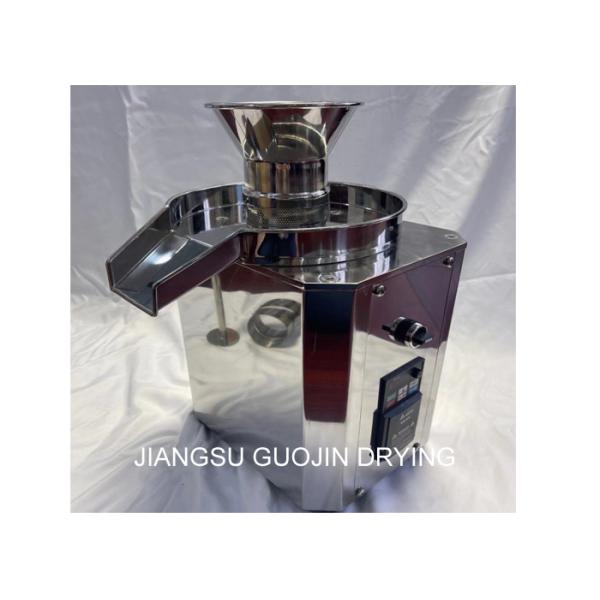

REG Lab Testing Rotary Extruding Pelletizer Machine

The REG rotary granulator is widely used in industries such as pharmacy, foods, medicinal granules, chemicals, and solid beverage. It can press the mixed substance into the demanded particles or smash wasted tablets and dried cubes and then roll them into particles. It is especially suitable for highly sticky substance. The part where the rotary granulator contacts with the substance is made of stainless steel. It possesses a beautiful appearance, proper structure, a high efficiency of particle formation. The particles are beautiful, too. It sends out substance automatically so as to avoid damage caused by manual sending, so it is suitable for line production. The roller blade and the swaging rotate in the opposite directions by means of mechanical rotation. The swaging leaf is placed at a certain angle to push the substance downward into the roller blade, then the large-angle helical blade pushes the substance into the sieve's wall, at last, the blade squeezes the substance into particles through the sieve pores.

Product Application

Rotary granulator is mainly used in food, pharmaceutical, chemical, Chinese traditional medicine granule, solid beverage chicken and other with the water viscosity material granulating, classical materials are: solid instant granule particle, lotus root starch granules, chicken ginger poor red jujube poor infusion of particles, such as particles. It has the following characteristics:

1.The particle strength is not high, when the water is dispersed and rapidly dissolves;

2.It is very convenient to change the sieve into different diameter particles;

3.Extruded particles through a sieve mesh evenly.

Technical Parameters

Size of miling knife(mm)	250	300B	30D
Granule diameter(mm)	Ø2-2.2 according to custoemer's requrements	Ø1.2-3 according to custoemer's requrements	Ø0.5-6 according to custoemer's requrements
Overall dimensions(mm)	700*540*1300	800*640*1300	1300*800*1200
Motor power(kw)	3	4	7.5-6
Weight(kg)	350	400	780
Production capacity(kg/h)	100-200	140-400	300-600

Product Detailed Images

Product Show
