Aluminium Stearate Spin Flash Vaporization Dryer

SFD Aluminum Stearate Dryer Features

1. Adopt 2 lines tangential air enter into volute at the best position,it will improve or remove blind Angle of wind and also the wind in the weak.

2. Be good at control the powder’s moisture,fineness,and hold time.for control the speed coordinating and unifying at spinning disk work with wind-enter ,it can ensure the outlet wind with low temperature,it will also reduce the energy consumption.

3. The special alloy steel be used in the rotary blade,the layout structure with unique,it have the character of small erosion,contact surface wide,cutting force strong.

4. Adopt the newly leak-proof structure,the main engine bearing life will be delay,and the bearing black with the cooling device.

5. In order to ensure the powder water content less than 0.5%,so increase the height than the original basis ,it also equip with spinning disk,it will make the powder quality and particle size meet with your requirement.

Due to the gas-solid corresponding relative velocity big,even though the mix temperature around 80~90℃,the powder temperature still on below 45℃ condition,it will help to packing and save energy.

SFD Aluminum Stearate Dryer Application

SFD rotating flash drying machine is applicable to dry viscous, thixotropic, thermosensitive powdery and granular materials in the dyes, pigment, chemical, ceramics, food and pharmaceutical industry. The appropriate materials can be dried by this drying equipment include:
1. Inorganic materials: boric acid, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, metal hydroxide, heavy metallic salt and compound cryolite.
2. Organic materials: atrazine, lauric acid, benzoic acid, sodium oxalate, cellulose acetate
3. Ceramics: kaolin, silica and calay
4. Dyes: anthraquinone, black iron oxide, butyrate, titanium hydroxide, zinc sulfide, azo dyes
5. Food: soy protein, gelatinized starch, vinasse, triticin, wheat starch
6. Pharmaceuticals: analgin (The first domestic application of flash dryer)

SFD Aluminum Stearate Dryer Technical Parameters

Type	Barrel diameter(mm)	Main machine dimensions(mm)	Main machine power(kw)	Treatment wind capacity(m3/h)	Water evaporatoion(kgg/h)
SFD-2	200	250x2800	5-9	300-800	10-20
SFD-3	300	4400x3300	8-15	600-1500	20-50
SFD-4	400	500x3500	10-17.5	1250-2500	25-70
SFD-5	500	600x4000	12-24	1500-4000	30-100
SFD-6	600	700x4200	20-29-2500	5000	40-200
SFD-8	800	900xx4600	24-35	3000-8000	60-600
SFD-10	1000	1100x5000	40-62	5000-12500	100-1000
SFD-12	1200	1300x5200	50-89	10000-20000	150-1300
SFD-14	1400	1500x5400	60-105	14000-27000	200-1600
SFD-16	1600	1700x6000	70-135	18700-36000	250-2000

SFD Aluminum Stearate Dryer Flowchart

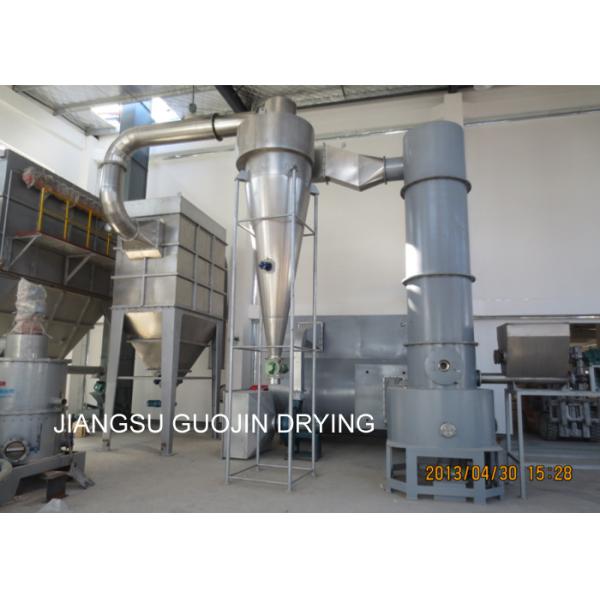

SFD Aluminum Stearate Dryer Show
