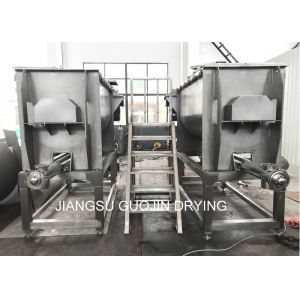

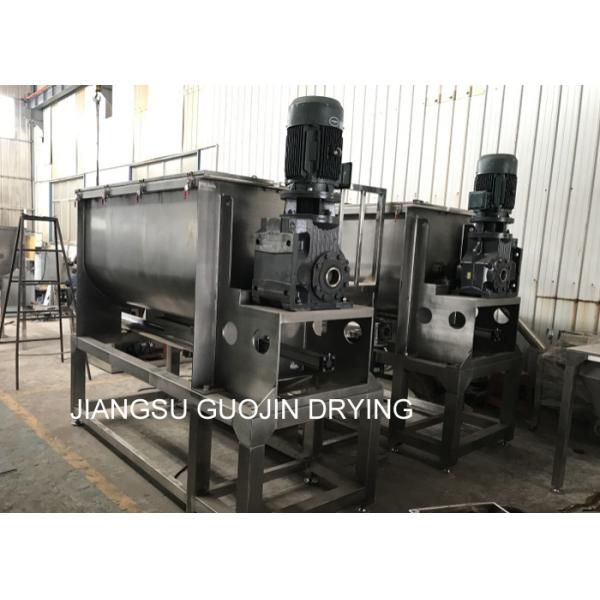

Detergent/Spice Powder Vertical Horizontal Ribbon Blender Mixer

Horizontal Ribbon Mixer for powder is a brand-new mixer. It is characterized in high efficiency, high degree of homogeneity, high load coefficient, low energy consumption, low pollution, little destruction to frangible material. It is suitable for mixing a wide range of materials such as powder-powder, power-liquid, especially for paste, thick materials.

Horizontal Ribbon Mixer is composed of container, screw stirring paddles and transitional parts: the screw paddle are generally made into 1 layers or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing of powder which needs to add liquid, and paste material.

Horizontal Ribbon mixer for powder is characterized by big coefficient of loading, small occupied area and difficult to clean viscous material. So it is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.

Product Working Principle

WLDH series horizontal double blade ribbon blender mixer machine consists of a U-shaped horizontal trough and a specially fabricated agitator. A ribbon agitator consists of a set of inner and outer helical agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction.The ribbon ratates at approx. 45 RPM moves materials both radially and laterally to insure thorough blends in short cycle times. WLDH series horizontal double blade ribbon blender mixer machine is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.

Product Features

1) Simple structure in horizontal U shape ,easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.

3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material.

Product Application

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.

It has a very good effect for mixing spice or dry powder with liquid.

Technical Parameters

Model	WLDH-0.1	WLDH-0.3	WLDH-0.5	WLDH-1	WLDH-1.5	WLDH-2	WLDH-3	WLDH-4	WLDH-6	WLDH-8	WLDH-10
Mixed amount/batch(kg)	30-50	100-150	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
Equipped power(kw)	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Weight(kg)	420	850	1060	1790	1900	2750	3500	4280	5300	6800	7800

Product More Details

Product Show
