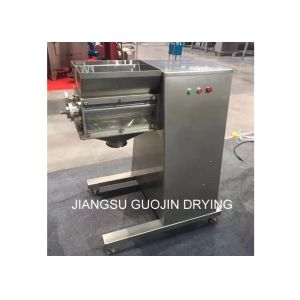

Wet Material Swing Vibrate Pellet Granulator

The material is fed from the top hopper. The oscillating roller crushes the dry lump and breaks them down into small grain or powder, which is passed through sieve hole. It also can extrude wet material into regular size granule via sieve hole by oscillating roller.

It can be widely used in Pharmaceutical Industry, Foodstuff Industry, Chemical Industry, etc.

Product Features

1. This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.

2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate
such as porcelain and plastic mixtures into forming granules.

3. It is not suitable for solid, fluid medium, paste or pulverizing.
4. Its mesh number of sieve should be prepared by users, according to the size of granule.

Technical Parameters

Product Application

This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.

Technical Parameters

Model	Model B	Model C(heavy type)	ORM160-F-120(Non-standard)
Productive capacity(kg/h)	100-200	150-300	600-1000
Motor power(kw)	3	4	7.5
Roller revolution(r/min)	65	65	10-44
Swing angle	360	360	360
Roller diameter(mm)	160	160	160
Overall dimensions(mm)	100*680*1250	1260*750*1250	3100*930*1250
Weight(kg)	300	450	2200
